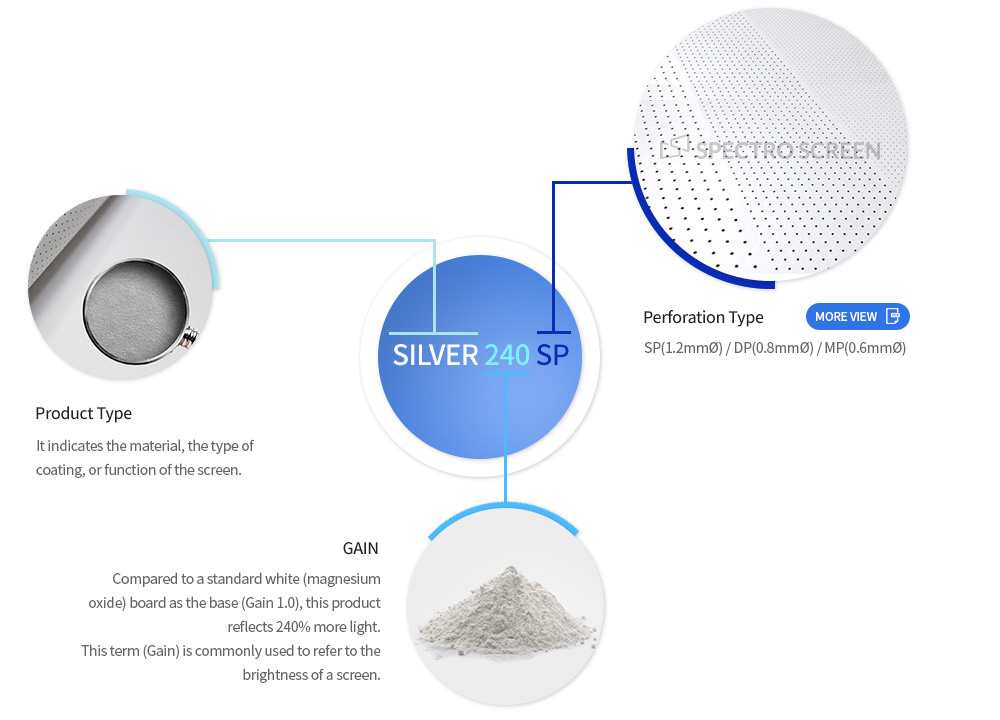

The nomenclature and meaning of various screens

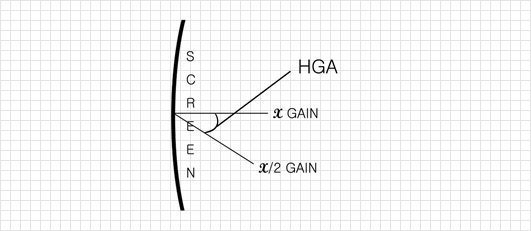

What is HGA?

HGA

HGA is the abbreviation of Half Gain Angle, and this term is a commonly used indicator to estimate the viewing angle.
At this angle the center of the picture appears to be half as bright (the Gain value drops 50%) as when viewed from the center zero degree viewing axis.

What is SNR?

SNR

SNR is an abbreviation for "Signal to Noise Ratio" which is also referred to as Cross Talk.
This valus is used to measure the 3D projection capability for silver screens.
The higher SNR a screen possesses, the clearer image that is deep and free of distortion the screen is capable of projecting.

PRIMA SILVER

SILVER SERIES

PEARL SERIES

WHITE SERIES

REAR SERIES

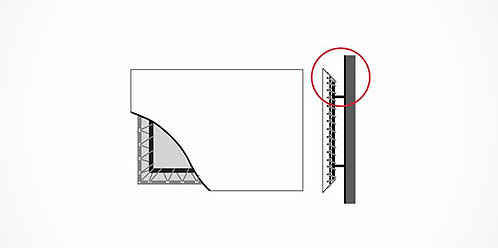

WRAP ROUND FRAME

Material : STEEL

  • Most ideal to medium and large size screens
  • Available to manufacture upon customers requirements
  • Wrapping the edges of frame with the screen, thus ensuring the widest possible projection
  • No masking is necessary

FLAT PACK FRAME A-TYPE

Material : Aluminum(black velvet finishing)

  • Ideal for medium sized indoor wall screen(100 ~ 350 inches)
  • Maintains the best flatness
  • Light and strong
  • Available to use in portable screen by easily attaching legs

FLAT PACK FRAME B-TYPE

Material : Aluminum(black velvet finishing)

  • Ideal for medium sized indoor wall screen(100 ~ 350 inches)
  • Maintains the best flatness
  • Light and strong
  • Available to use in portable screen by easily attaching legs
  • Ideal for ultra-short-throw projectors
  • Wider projection

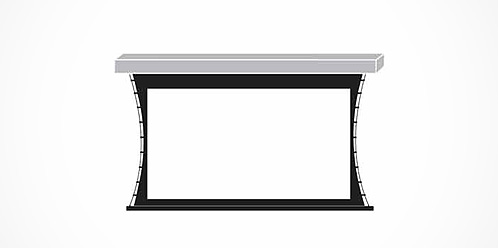

MOTORIZED (TAB-TENSION) SCREEN A-TYPE

Available to install all type of screens(~500” for 16:9)

  • Provides accurate projection of the image to the screen
  • Tension function at the right and left sides of the frame ensures the best flatness of the screen
  • Smoothly operated and trouble-free electric motor(Somfy)

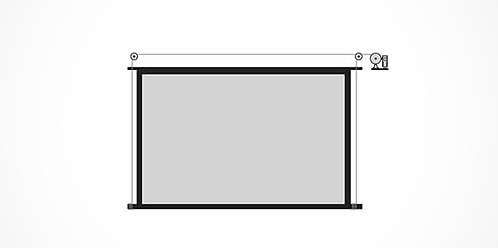

MOTORIZED (TAB-TENSION) SCREEN B-TYPE

Available to install all type of screens

  • Various electrically operated screens(3 to 20m)
  • Provides accurate projection of the image to the screen
  • Smoothly operated and trouble-free electric motor(Somfy)
